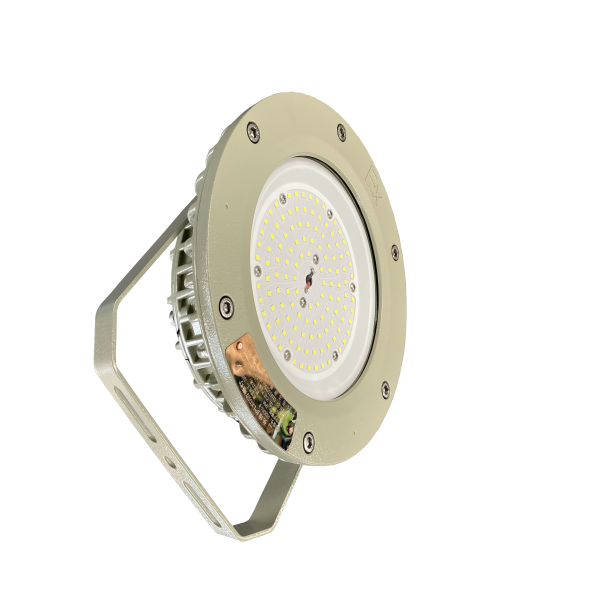

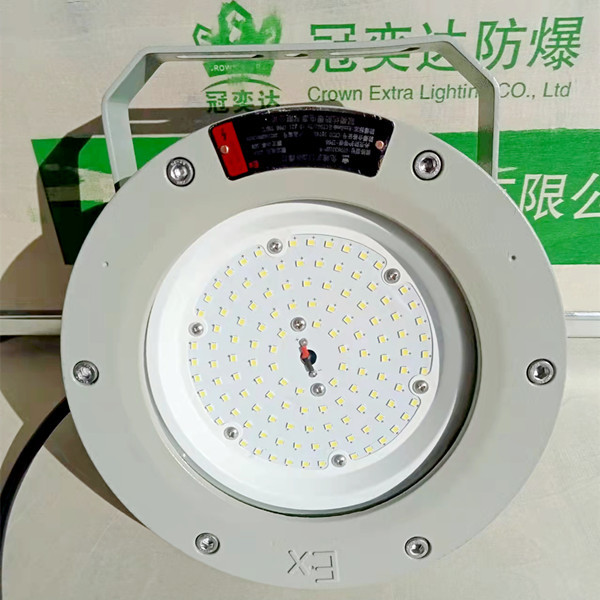

Class1 Div1 Explosion Proof Highbay Lighting 50 Watt Led Ufo Lights
Features:
1. Zone2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Constant current output, stable performance
6. Low power consumption, high light efficiency, good color rendering property
Specification:
| ELECTRIC |
| Operating voltage | AC 110-277V (50-60Hz) | Power consumption | 30W//50W/80W/100W/150W |
| MECHANICAL |
| Size | 212*154cm | Anti-corrosion | WF1 |
| Operating temperature | -20 ̊C ~ +50 ̊C | Cable entry | M25*1.5/NPT 3/4”cable entry, suitable for ø10 ~ ø14mm² cable ≤2.5mm² conductor |
| Weight | 5Kg | IP Class | IP65 |
| Installation | Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount |
| CERTIFICATION LABEL |
| Standard | GB3836.1-2010,GB3836.2-2010, GB12476.1-2000, |
| IEC60079-0:2011, IEC60079-1:2007,IEC60079-31:2008, |
| EN60079-0:2009,EN60079-1:2007,EN60079-31:2009 |
Application:
They are widely used in dangerous environment:
such as gas station, petroleum exploitation, oil refining, chemical industry, military industry,
offshore oil platforms, oil tankers and other places for general lighting and operation lighting.
Company introduction:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales
and service. The company is located in Changzhou, China.
The company is committed to becoming a provider of environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc.
